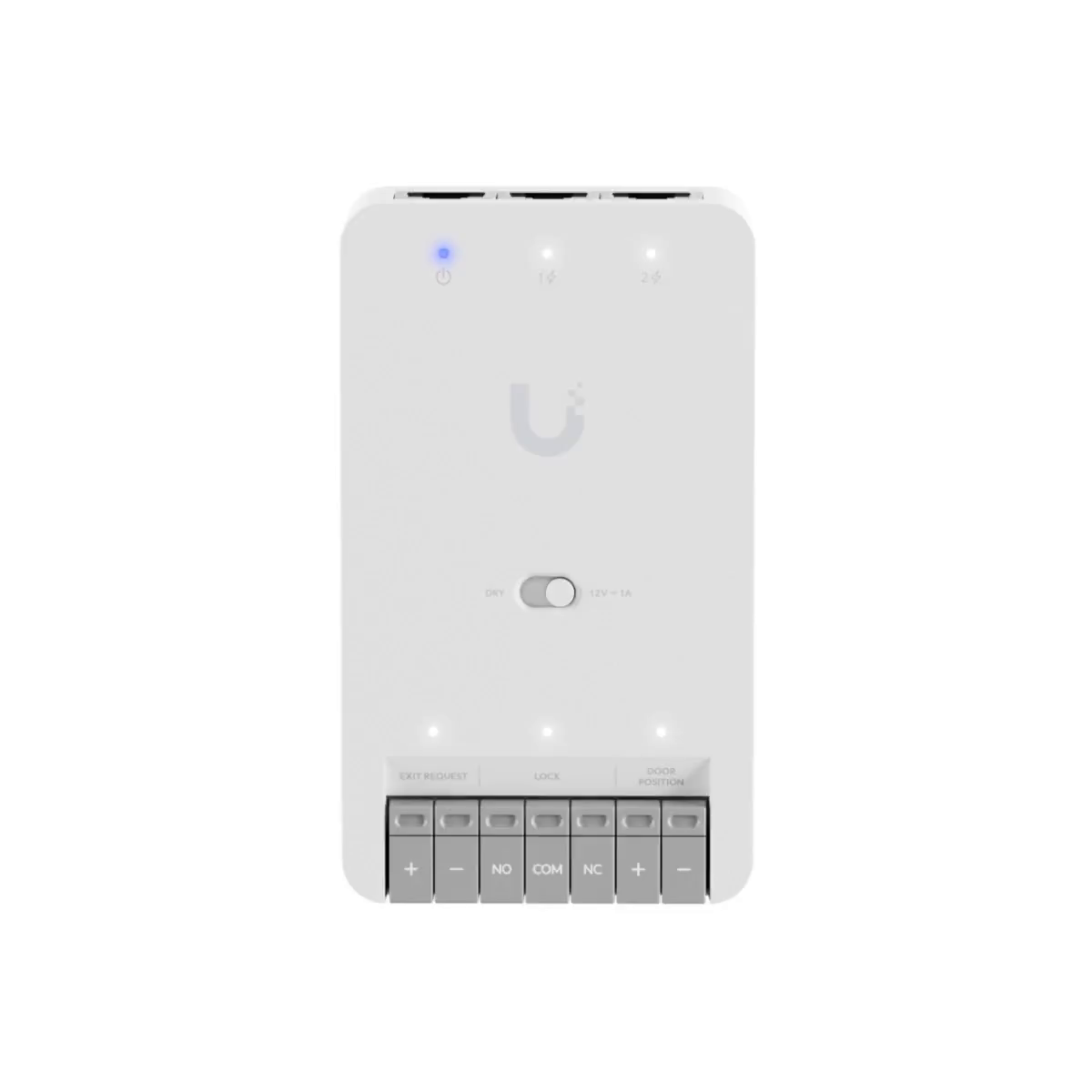

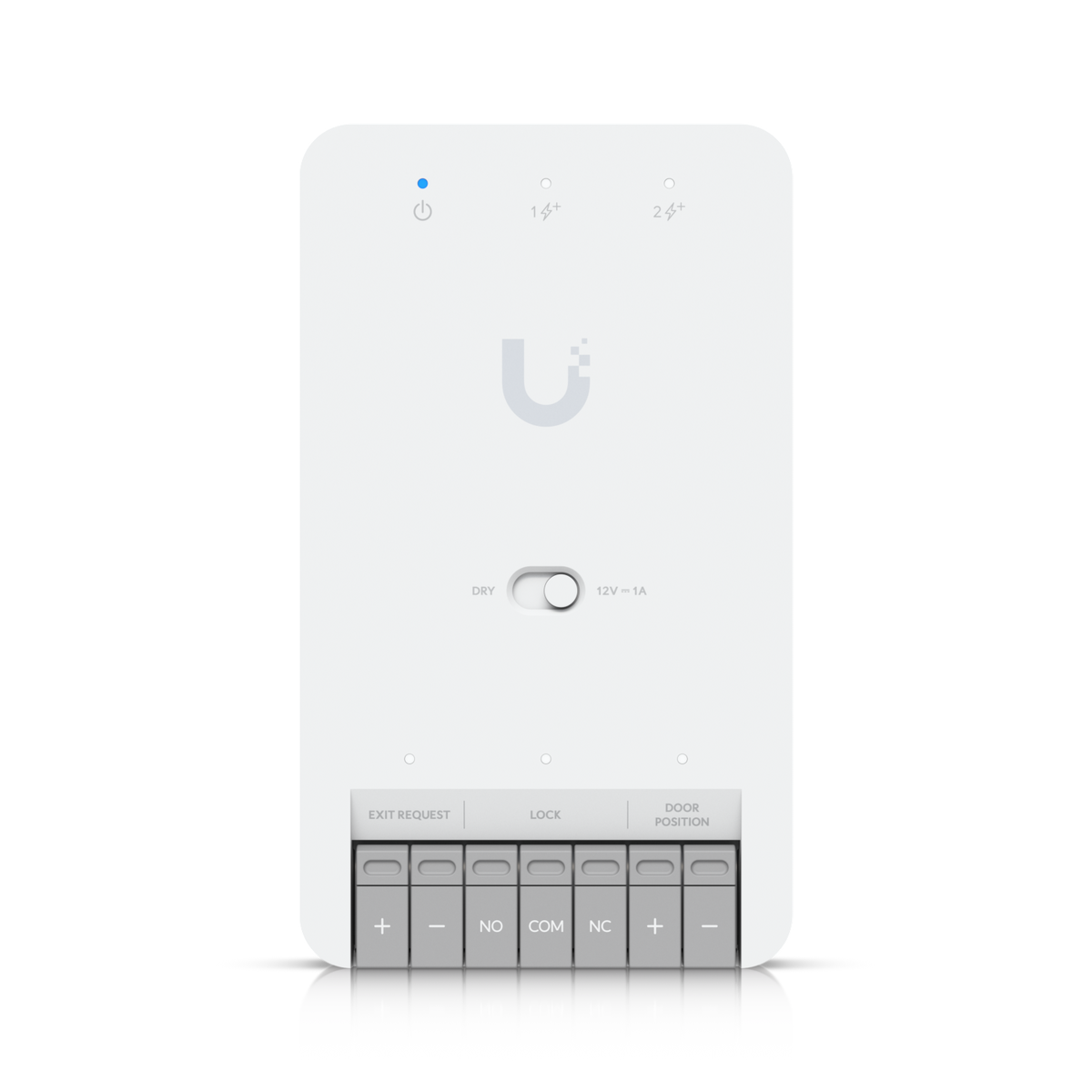

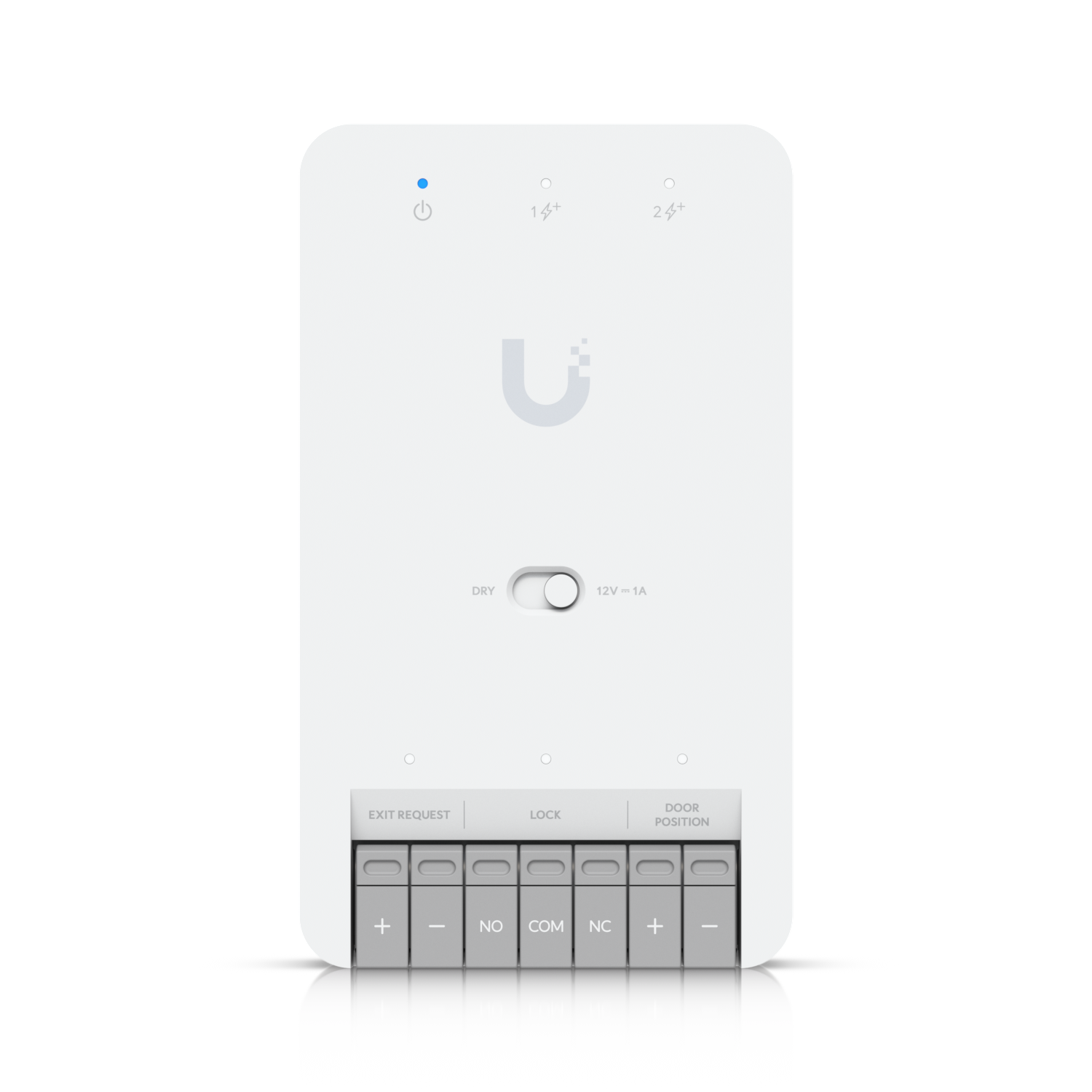

Add reliable single-door access control to your smart building setup with this As New, untested Ubiquiti UniFi Access Mini Door Hub (UA-Hub-Door-Mini). This compact hub manages exit request, door position sensing and lock control for one door directly from the UniFi Access app, with a PoE++ input and two PoE+ outputs so it can also power a reader and a camera from the same cable run.
Please note: this unit is sold "as new" cosmetically but is untested — it has not been functionally verified prior to sale, so please factor this into your purchase decision.
Key Features
Single-Door Access Control
A dedicated hub that manages exit request, door position sensing and lock control for one door, supporting up to 3,000 users.
PoE++ Powered, PoE+ Passthrough

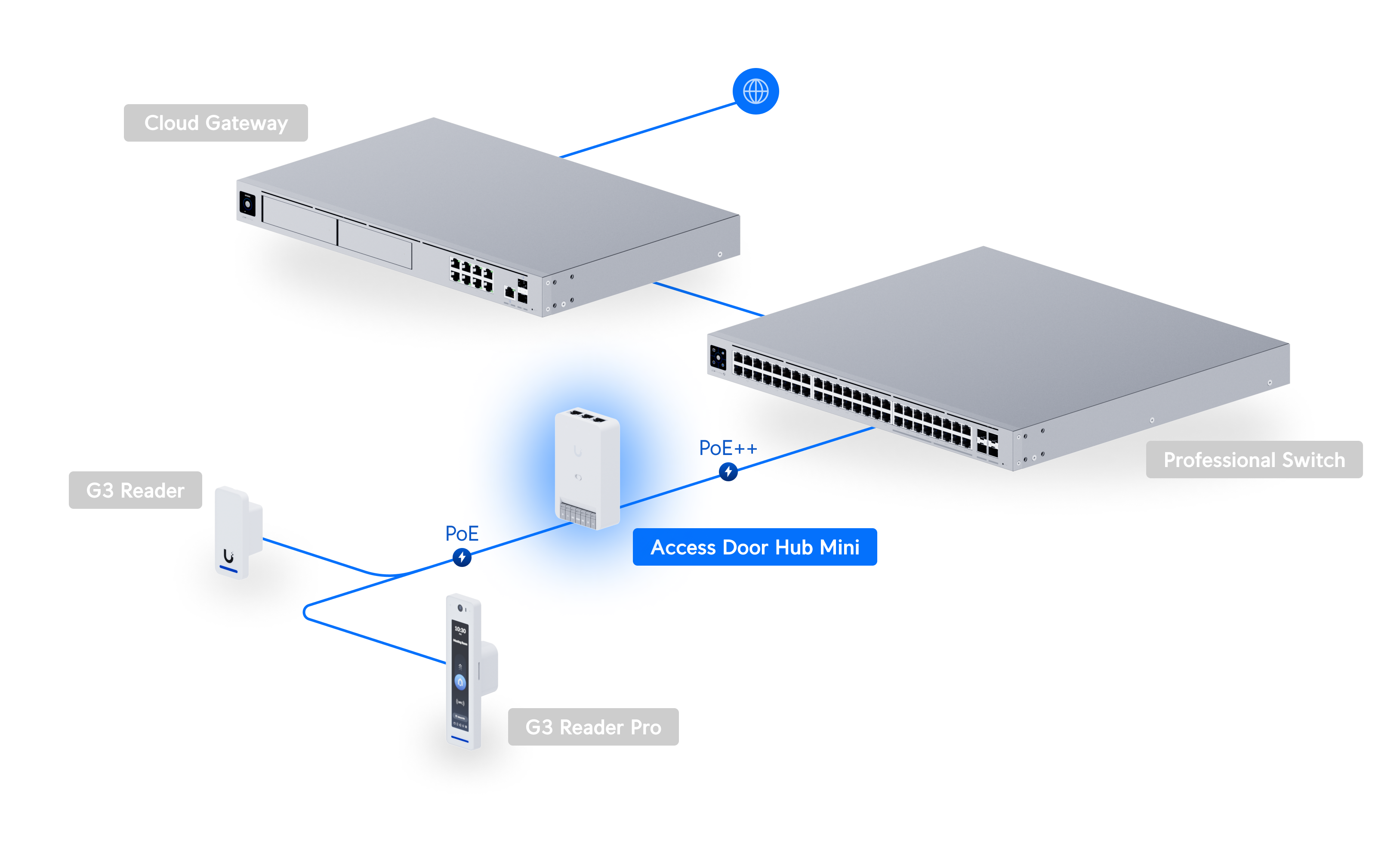

One GbE PoE++ input plus two GbE PoE+ outputs (up to 45W aggregated) power the hub and let you run a reader and a camera from the same cable.
Flexible Lock Support
Dry (30V DC, 1A) and wet (12V DC, 1A) switchable output relays support a wide range of electric strikes, maglocks and other locking hardware.
UniFi Access Integration
Manage credentials, schedules and live activity remotely via the UniFi Access app and unifi.ui.com.

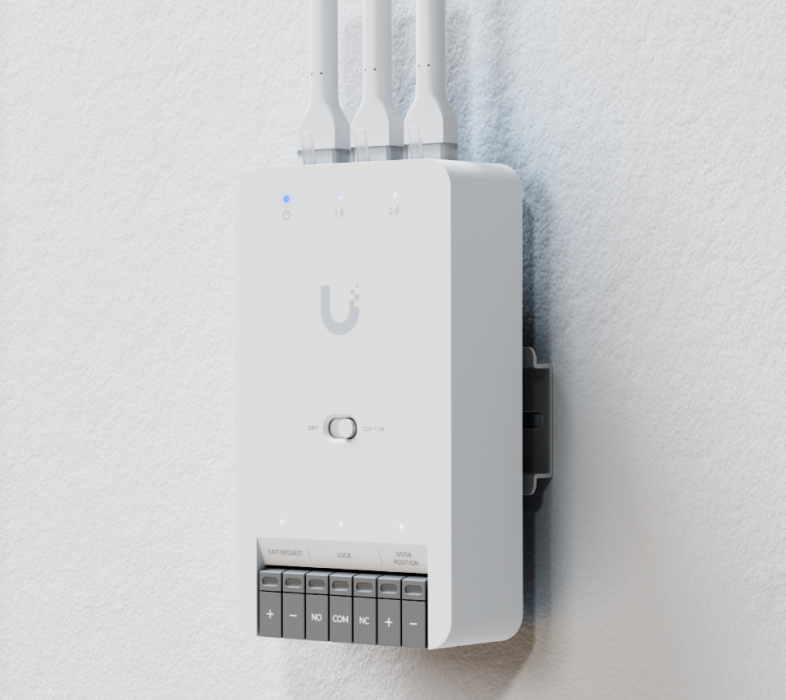

Compact DIN-Rail Mount
Small polycarbonate and metal enclosure (113 x 66 x 27.6mm) with an included DIN-rail mount for tidy installation in a comms cabinet or wall box.
Indoor-Rated Build
Designed for indoor installation with a 0-40°C operating range and NDAA compliant hardware.
Condition
- As New — cosmetically like new with no visible signs of wear
- Untested — functionality has not been verified prior to sale
- Includes Door Hub Mini unit with DIN-rail mount attached
Specifications
- Brand: Ubiquiti
- Model: UniFi Access Door Hub Mini (UA-Hub-Door-Mini)
- Supported Doors: 1
- Maximum User Count: 3,000
- Networking Interface: 3x GbE RJ45 ports (1x PoE++ input, 2x PoE+ outputs)
- Power Consumption: 19W (without PoE output) / 50W (with PoE output)
- Input Terminals: Door exit request, door position sensor
- Output Relays: Dry (30V DC, 1A), Wet (12V DC, 1A)

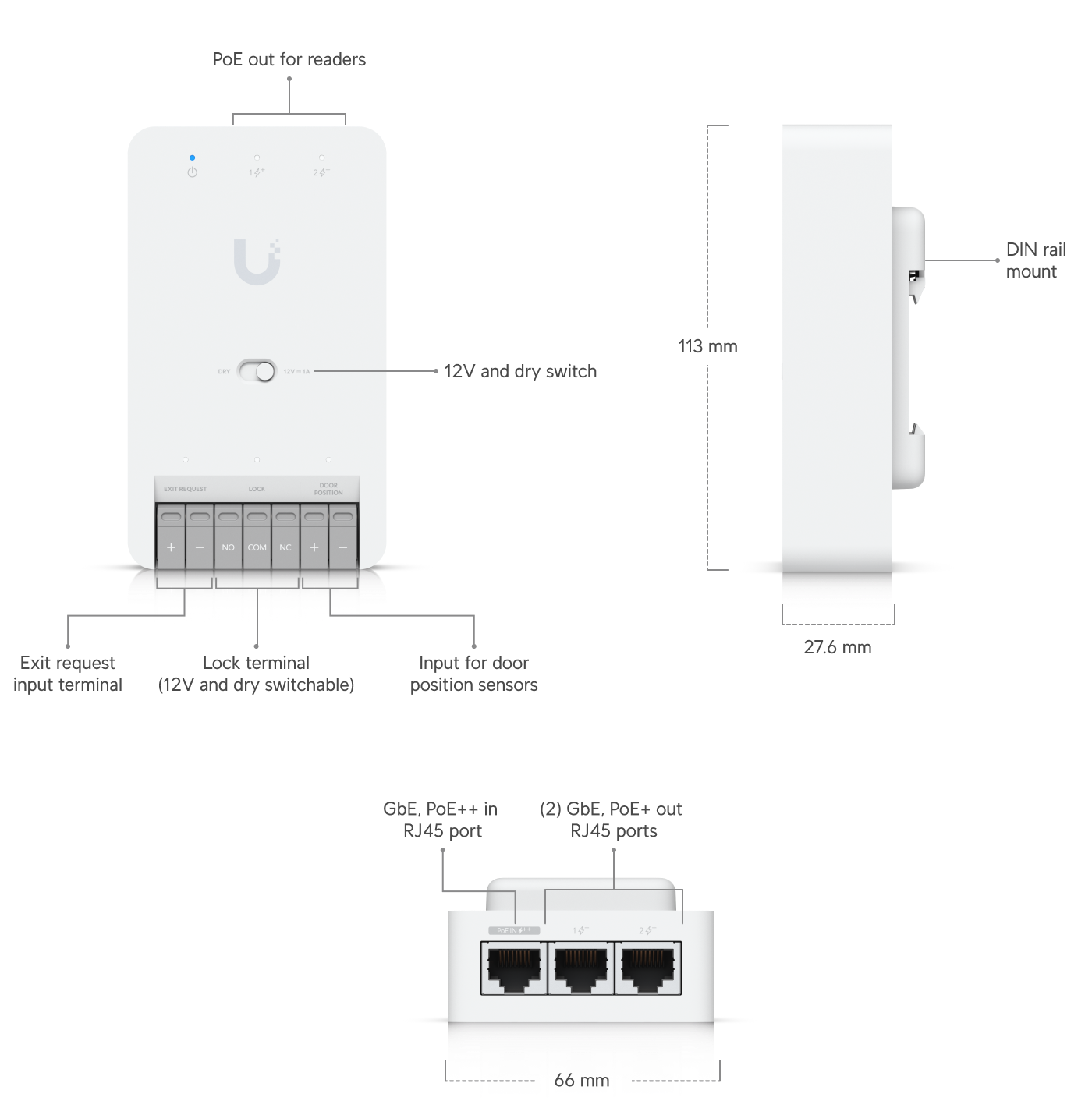

- Dimensions: 113 x 66 x 27.6mm
- Weight: 190g
- Enclosure Material: Polycarbonate, metal
- Mounting: DIN-rail (included)
- Operating Temperature: 0 to 40°C
- Indoor/Outdoor Use: Indoor only
- Condition: As New, Untested
Performance Highlights
- Dedicated single-door control keeps access management simple and reliable
- PoE++ input with dual PoE+ outputs simplifies cabling for readers and cameras
- Supports up to 3,000 users per hub for small-to-medium access needs
- Compact DIN-rail design fits neatly into existing comms cabinets
- Certified to UL 294 and CAN/ULC-60839-11-1 for access control hardware
